Tamiya TT-02 1/10 RC Toyota GR 86 Kit

Tamiya TT-02 GR86 RC Kit: Unleash the Speed & Precision!

Unleash your inner glow with this captivating piece – a secret whispered in shimmering hues, designed to ignite your spirit and elevate your everyday. It’s more than just an item; it’s a touch of magic, a reflection of your unique brilliance, ready to transform the ordinary into the extraordinary.

$65.80 $131.60

num:

description

Details:

This Tamiya R/C kit recreates the Toyota GR 86 as a 1/10 R/C product. The Toyota GR 86 is a lightweight front- engine, rear-wheel-drive sports car which was announced in April 2021. It has a broad stance, low center of gravity, and employs aerodynamic components rooted in motorsports. The aluminum engine hood, roof and front fenders are lightweight and the suspension features front strut and rear double wishbone systems. This car is powered by a 2.4-liter horizontally opposed four-cylinder DOHC engine capable of 235hp.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

Required to Complete

2-channel radio
Steering servo
7.2volt battery
Compatible charger
Tamiya PS paint
Assembly, painting, and assembly tools required

Features

Headlight cases are separate polycarbonate parts, and give a super realistic look with stickers applied
The air intakes which sandwich the front bumper on either side are also depicted with authenticity by stickers
The Functional Matrix Grille is also depicted using a sticker; the license plate is cut out of polycarbonate
Side mirrors use two types of black (bottom: semi-gloss); mirror surfaces are also cut out of polycarbonate

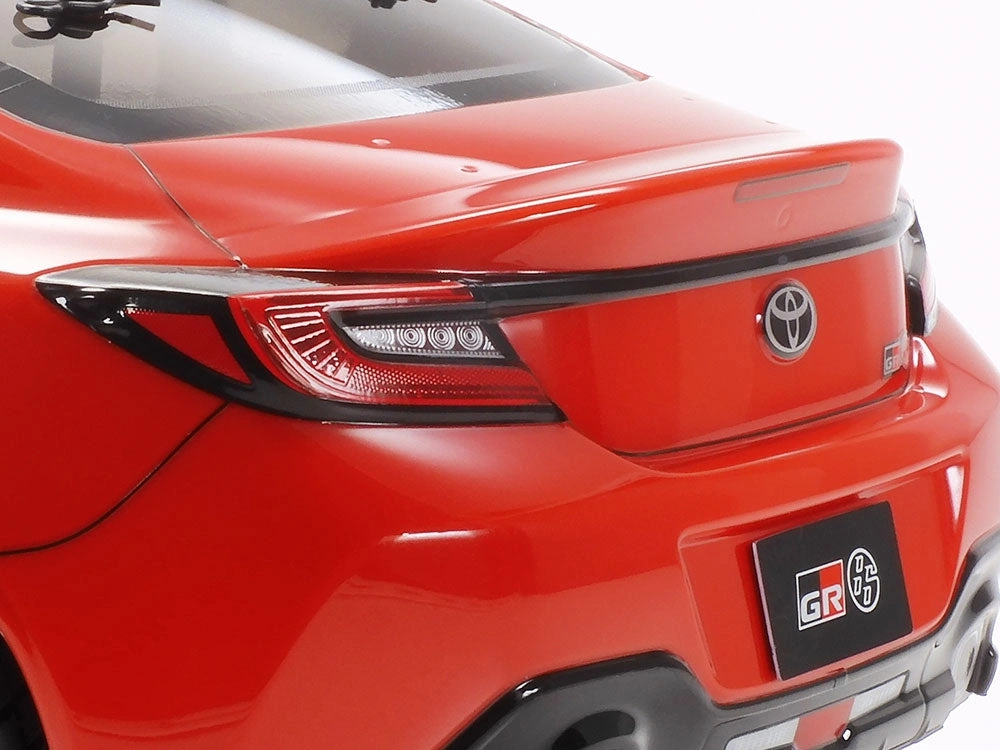

The duckbill trunk lid is an eye-catcher. Rear combination lamps are separate polycarbonate parts

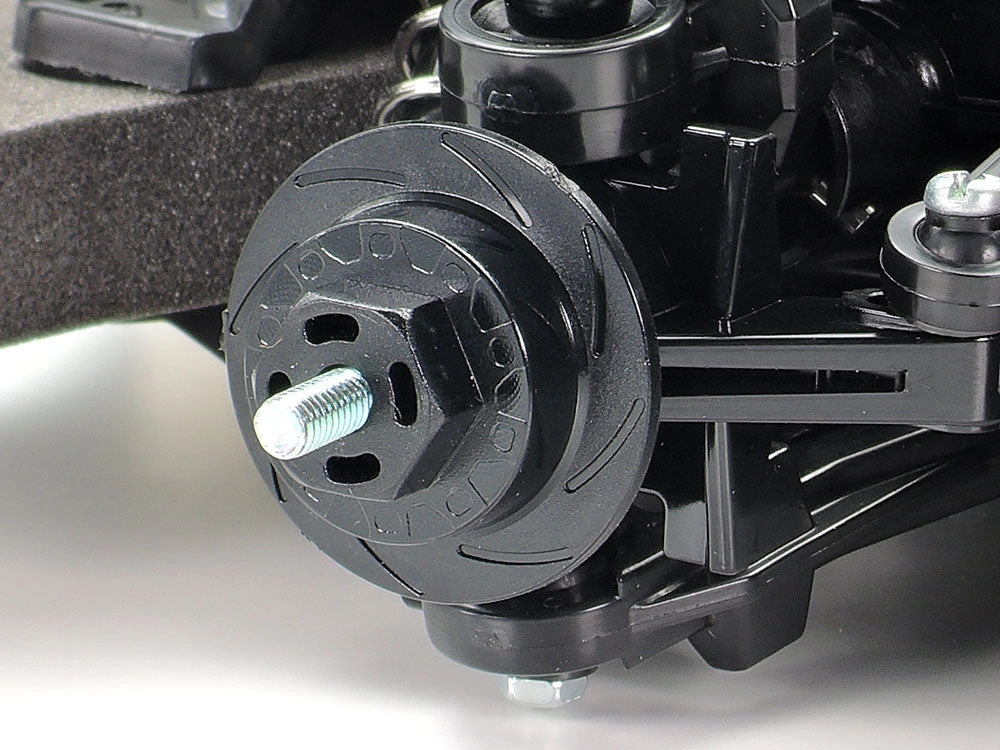

Wheel hubs are shaped to look like brake discs
Resin ball links in the steering linkage joints make for smooth, comfortable motion
Motor cover includes removable cooling duct
This image gives a closer look at the rear double-wishbone suspension with friction dampers
Black 10-spoke one-piece wheels are paired with racing radial tires.
Body requires painting, cutting out, attachment of parts, application of stickers, and other work.

Specifications

Construction Type: Assembly Kit
Chassis Type: TT-02
Length: 428mm, width: 188mm, height: 131mm
Wheelbase: 257mm
Tire width/diameter: 27/67mm (front & rear)
Bathtub-type frame
Shaft-driven 4WD
Front/rear 4-bevel resin differentials
3-piece steering tie-rod
4-wheel double wishbone suspension
Front/rear friction dampers
Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions)
Type 540 motor
Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
